Protect APIs with DPoP-bound Access Tokens

This guide explains how to use heimdall to protect an API with DPoP-bound access tokens issued by an OAuth 2.0 authorization server.

By the end of this guide, you’ll have a setup where heimdall protects an API with DPoP-bound access tokens issued by Keycloak. Although this guide uses Keycloak as authorization server, you can use the same approach with any OAuth 2.0 authorization server that issues DPoP-bound access tokens according to RFC 9449.

Overview

DPoP, short for Demonstrating Proof-of-Possession, sender-constrains OAuth 2.0 access tokens. Instead of treating an access token as a pure bearer credential, the client proves possession of the private key the token is bound to on every request.

Technically, the setup includes:

Keycloak - Issues DPoP-bound access tokens.
A DPoP-capable client - Requests an access token and creates DPoP proofs for calls to the protected API.
heimdall - Validates the access token and the corresponding DPoP proof.
traefik/whoami - Simulates the protected upstream service.

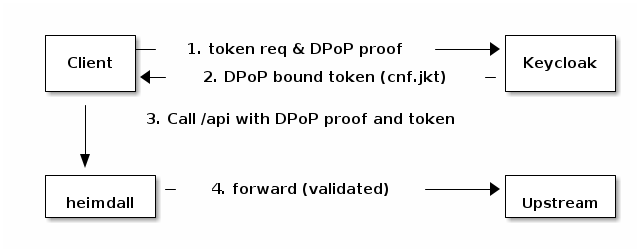

The DPoP-specific flow looks like this:

In this guide, heimdall is configured to require DPoP nonces. That means the first request to the protected API is answered with a nonce challenge. The client then repeats the request with a fresh proof that includes the nonce returned by heimdall.

heimdall runs in proxy mode here, sitting directly in front of the upstream service and handling both DPoP validation and request forwarding in a single hop. The same functionality can also be achieved when heimdall is integrated with any reverse proxy as a decision service — the DPoP configuration stays exactly the same. See the proxy integration guides for Traefik, NGINX, Envoy, and others. We kept this guide to standalone proxy mode to avoid extra moving parts.

Prerequisites

To follow this guide, you need the following tools installed locally:

Configure the Base Setup

Create a directory for the configuration files named heimdall-dpop. Inside this directory, create two additional directories named rules and client. The rules directory will contain heimdall’s rules, and the client directory will contain the DPoP client used to obtain tokens and call the protected API.
```
mkdir heimdall-dpop
cd heimdall-dpop
mkdir rules client
```

Create a configuration file for heimdall named heimdall-config.yaml with the following contents:

log: (1)
  level: debug

tracing:
  enabled: false

metrics:
  enabled: false

secret_management: (2)
  nonce_keys:
    type: jwks
    config:
      path: /etc/heimdall/secrets.jwks

master_key: (3)
  source: nonce_keys
  selector: dpop-nonce-master-key-1

mechanisms:
  authenticators:
    - id: deny_all (4)
      type: unauthorized
    - id: dpop_jwt (5)
      type: jwt
      config:
        jwks_endpoint:
          url: http://keycloak:8080/realms/dpop/protocol/openid-connect/certs
        assertions:
          issuers:
            - http://keycloak:8080/realms/dpop
            - http://127.0.0.1:8080/realms/dpop
          allowed_algorithms:
            - RS256
            - ES256
          validity_leeway: 10s
          proof_of_possession: (6)
            type: dpop
            config:
              max_age: 1m
              nonce_required: true
              replay_allowed: false
        error_signaling: (7)
          enabled: true
          include_error_description: true
          include_dpop_algorithms: true

  finalizers:
    - id: noop (8)
      type: noop

  error_handlers:
    - id: default (9)
      type: default

default_rule: (10)
  execute:
    - authenticator: deny_all
    - finalizer: noop
  on_error:
    - error_handler: default

providers: (11)
  file_system:
    src: /etc/heimdall/rules
    watch: true

1	By default, heimdall logs at the `error` level. We set it to `debug` to see detailed information about rule execution and DPoP validation results. Tracing and metrics are disabled to avoid errors from a missing OTEL collector. For more details, see the Observability chapter.
2	A secret source named `nonce_keys` backed by a JWKS file. It provides the symmetric key material required for DPoP nonce generation and validation.
3	The `master_key` setting references the key that heimdall uses to generate and validate DPoP nonces. It must point to a symmetric key from a configured secret source. This setting is required whenever `nonce_required` is set to `true`.
4	The `unauthorized` authenticator named `deny_all` rejects every request. It is used by the default rule to lock down all endpoints that are not explicitly matched by a regular rule.
5	The `jwt` authenticator named `dpop_jwt`. It validates access tokens against the JWKS endpoint directly. Two issuer values are configured because the token’s `iss` claim reflects the URL the client used when obtaining it: the browser-based Authorization Code flow reaches Keycloak at `127.0.0.1:8080`, while heimdall fetches the JWKS over the internal Docker network at `keycloak:8080`.
6	The DPoP proof-of-possession assertion. With `nonce_required: true`, heimdall rejects any request that does not include a valid nonce and issues a `DPoP-Nonce` challenge so the client can retry. With `replay_allowed: false`, heimdall rejects previously seen DPoP proofs based on their `jti` claim.
7	Configures WWW-Authenticate error signaling according to RFC 9449. When DPoP nonce validation fails, heimdall returns a `use_dpop_nonce` error in the `WWW-Authenticate` header along with a fresh `DPoP-Nonce` header.
8	The `noop` finalizer passes the request to the upstream service without modifying it.
9	The `default` error handler returns a plain HTTP error response.
10	The default rule acts as a security baseline: it rejects all requests that are not matched by a more specific rule. Regular rules inherit from this rule and only need to specify what they override.
11	The `file_system` provider loads rules from the `/etc/heimdall/rules` directory and watches for changes.

Create a file named secrets.jwks with the following contents:

{
  "keys": [
    {
      "kty": "oct",
      "kid": "dpop-nonce-master-key-1",
      "k": "2M0G6EosV6PZq4N2FxmDqkJYb3mHkYaJzMX7Wm3Jj1o"
    }
  ]
}

Do not use this key for anything beyond this guide. Use your own securely generated key material in real deployments.

Create a file named upstream-rules.yaml in the rules directory with the following contents:
```
version: "1beta1"

rules:
  - id: upstream:api
    match:
      routes:
        - path: /api
        - path: /api/<**>
    forward_to:
      host: upstream:8081
    execute:
      - authenticator: dpop_jwt
```
This rule matches requests to /api and any sub-path. It inherits the finalizer and error handler from the default rule and only overrides the authenticator, replacing the deny-all baseline with the dpop_jwt authenticator that accepts DPoP-bound access tokens. Requests that pass validation are forwarded to the upstream service.

Create the DPoP client. First, create a file named pyproject.toml in the client directory:

[project]
name = "heimdall-dpop-smoke-client"
version = "0.1.0"
requires-python = ">=3.13"

dependencies = [
    "httpx==0.28.1",
    "pyjwt[crypto]==2.10.1",
    "click==8.4.1"
]

[project.scripts]
client = "dpop_client:cli"

[build-system]
requires = ["hatchling"]
build-backend = "hatchling.build"

[tool.hatch.build]
include = [
    "dpop_client.py"
]

The [project.scripts] entry exposes the CLI as client, which lets uv invoke it as uv run client <command> without specifying the file path.

Then, create a file named dpop_client.py in the client directory:

from __future__ import annotations

import base64
import hashlib
import json
import os
import secrets
import shutil
import time
import uuid
from dataclasses import dataclass
from http.server import BaseHTTPRequestHandler, ThreadingHTTPServer
from pathlib import Path
from typing import Any, cast
from urllib.parse import parse_qs, urlencode, urlsplit, urlunsplit

import click
import httpx
import jwt
from cryptography.hazmat.primitives import serialization
from cryptography.hazmat.primitives.asymmetric import ec
from cryptography.hazmat.primitives.asymmetric.ec import EllipticCurvePrivateKey


def env(name: str, default: str | None = None) -> str:
    value = os.environ.get(name, default)

    if value is None:
        raise click.ClickException(f"Missing required environment variable: {name}")

    return value


STATE_DIR = Path(env("STATE_DIR", ".state"))
KEY_FILE = STATE_DIR / "dpop-private-key.pem"
OTHER_KEY_FILE = STATE_DIR / "other-dpop-private-key.pem"
TOKEN_FILE = STATE_DIR / "token.json"
RESOURCE_SERVER_DPOP_STATE_FILE = STATE_DIR / "resource-server-dpop-state.json"

AUTHORIZATION_ENDPOINT = env("AUTHORIZATION_ENDPOINT")
TOKEN_ENDPOINT = env("TOKEN_ENDPOINT")
PROTECTED_API = env("PROTECTED_API")
CLIENT_ID = env("CLIENT_ID")

REDIRECT_HOST = "0.0.0.0"
REDIRECT_PORT = int(env("REDIRECT_PORT", "8765"))
REDIRECT_PATH = "/callback"
REDIRECT_URI = f"http://127.0.0.1:{REDIRECT_PORT}{REDIRECT_PATH}"
SCOPE = env("SCOPE", "openid profile email")


@dataclass(frozen=True)
class ApiResult:
    status_code: int
    body: str
    dpop_nonce: str | None
    www_authenticate: str | None


@dataclass(frozen=True)
class CallbackResult:
    code: str
    state: str


@dataclass(frozen=True)
class ResourceServerDpopState:
    access_token_hash: str
    proof: str
    nonce: str


class CallbackServer(ThreadingHTTPServer):
    callback_result: CallbackResult | None
    callback_error: str | None


def b64url(data: bytes) -> str:
    return base64.urlsafe_b64encode(data).rstrip(b"=").decode("ascii")


def normalize_htu(url: str) -> str:
    parsed = urlsplit(url)
    return urlunsplit((parsed.scheme, parsed.netloc, parsed.path, "", ""))


def access_token_hash(access_token: str) -> str:
    return b64url(hashlib.sha256(access_token.encode("ascii")).digest())


def generate_private_key(path: Path) -> None:
    STATE_DIR.mkdir(parents=True, exist_ok=True)

    private_key = ec.generate_private_key(ec.SECP256R1())
    path.write_bytes(
        private_key.private_bytes(
            encoding=serialization.Encoding.PEM,
            format=serialization.PrivateFormat.PKCS8,
            encryption_algorithm=serialization.NoEncryption(),
        )
    )

    click.echo(f"Created DPoP key: {path}")
    click.echo(f"JWK thumbprint: {jwk_thumbprint(public_jwk(private_key))}")


def load_private_key(path: Path = KEY_FILE) -> EllipticCurvePrivateKey:
    if not path.exists():
        generate_private_key(path)

    key = serialization.load_pem_private_key(path.read_bytes(), password=None)

    if not isinstance(key, EllipticCurvePrivateKey):
        raise click.ClickException("The configured DPoP key is not an EC private key")

    return key


def public_jwk(private_key: EllipticCurvePrivateKey) -> dict[str, Any]:
    numbers = private_key.public_key().public_numbers()

    return {
        "kty": "EC",
        "crv": "P-256",
        "x": b64url(numbers.x.to_bytes(32, "big")),
        "y": b64url(numbers.y.to_bytes(32, "big")),
    }


def jwk_thumbprint(jwk: dict[str, Any]) -> str:
    canonical = json.dumps(
        {"crv": jwk["crv"], "kty": jwk["kty"], "x": jwk["x"], "y": jwk["y"]},
        separators=(",", ":"),
        sort_keys=True,
    )

    return b64url(hashlib.sha256(canonical.encode("utf-8")).digest())


def create_proof(
    *,
    method: str,
    url: str,
    access_token: str | None = None,
    nonce: str | None = None,
    key_file: Path = KEY_FILE,
    wrong_ath: bool = False,
    wrong_htu: bool = False,
    fixed_jti: str | None = None,
) -> str:
    private_key = load_private_key(key_file)

    claims: dict[str, Any] = {
        "jti": fixed_jti or str(uuid.uuid4()),
        "htm": method.upper(),
        "htu": "http://heimdall:4456/not-api" if wrong_htu else normalize_htu(url),
        "iat": int(time.time()),
    }

    if access_token is not None:
        claims["ath"] = access_token_hash("not-the-token") if wrong_ath else access_token_hash(access_token)

    if nonce is not None:
        claims["nonce"] = nonce

    return jwt.encode(
        payload=claims,
        key=private_key,
        algorithm="ES256",
        headers={"typ": "dpop+jwt", "alg": "ES256", "jwk": public_jwk(private_key)},
    )


def code_challenge(code_verifier: str) -> str:
    return b64url(hashlib.sha256(code_verifier.encode("ascii")).digest())


def wait_for_authorization_code(expected_state: str) -> CallbackResult:
    class CallbackHandler(BaseHTTPRequestHandler):
        server_version = "heimdall-dpop-client/1.0"

        def do_GET(self) -> None:
            parsed = urlsplit(self.path)

            if parsed.path != REDIRECT_PATH:
                self.send_response(404)
                self.end_headers()
                self.wfile.write(b"Not found")
                return

            params = parse_qs(parsed.query)
            server = cast(CallbackServer, self.server)

            if "error" in params:
                error = params.get("error", ["unknown_error"])[0]
                description = params.get("error_description", [""])[0]
                server.callback_error = f"{error}: {description}"

                self.send_response(400)
                self.end_headers()
                self.wfile.write(b"Login failed. You can close this tab.")
                return

            code = params.get("code", [None])[0]
            state = params.get("state", [None])[0]

            if code is None or state is None:
                server.callback_error = "Callback did not include code and state"

                self.send_response(400)
                self.end_headers()
                self.wfile.write(b"Invalid callback. You can close this tab.")
                return

            if state != expected_state:
                server.callback_error = "Callback state did not match"

                self.send_response(400)
                self.end_headers()
                self.wfile.write(b"Invalid state. You can close this tab.")
                return

            server.callback_result = CallbackResult(code=code, state=state)

            self.send_response(200)
            self.send_header("content-type", "text/plain; charset=utf-8")
            self.end_headers()
            self.wfile.write(b"Login successful. You can close this tab and return to the terminal.")

        def log_message(self, format: str, *args: object) -> None:
            return

    server = cast(CallbackServer, ThreadingHTTPServer((REDIRECT_HOST, REDIRECT_PORT), CallbackHandler))
    server.callback_result = None
    server.callback_error = None
    server.timeout = 300

    click.echo(f"Waiting for redirect on {REDIRECT_URI}")

    while server.callback_result is None and server.callback_error is None:
        server.handle_request()

    if server.callback_error is not None:
        raise click.ClickException(server.callback_error)

    if server.callback_result is None:
        raise click.ClickException("Did not receive authorization callback")

    return server.callback_result


def store_token_response(token_response: dict[str, Any]) -> str:
    TOKEN_FILE.write_text(json.dumps(token_response, indent=2), encoding="utf-8")
    return str(token_response["access_token"])


def print_token_summary(token_response: dict[str, Any]) -> None:
    access_token = str(token_response["access_token"])
    claims = jwt.decode(access_token, options={"verify_signature": False})

    click.echo(f"token_type: {token_response.get('token_type')}")
    click.echo("selected access token claims:")
    click.echo(
        json.dumps(
            {
                "iss": claims.get("iss"),
                "aud": claims.get("aud"),
                "sub": claims.get("sub"),
                "azp": claims.get("azp"),
                "preferred_username": claims.get("preferred_username"),
                "cnf": claims.get("cnf"),
            },
            indent=2,
        )
    )


def load_access_token() -> str:
    if not TOKEN_FILE.exists():
        raise click.ClickException("No access token found. Run `python dpop_client.py login` first.")

    return str(json.loads(TOKEN_FILE.read_text(encoding="utf-8"))["access_token"])


def delete_file(path: Path) -> bool:
    if not path.exists():
        return False

    path.unlink()
    return True


def clear_resource_server_dpop_state() -> bool:
    return delete_file(RESOURCE_SERVER_DPOP_STATE_FILE)


def load_resource_server_dpop_state(access_token: str) -> ResourceServerDpopState | None:
    if not RESOURCE_SERVER_DPOP_STATE_FILE.exists():
        return None

    try:
        raw_state = json.loads(RESOURCE_SERVER_DPOP_STATE_FILE.read_text(encoding="utf-8"))
    except json.JSONDecodeError:
        return None

    if raw_state.get("access_token_hash") != access_token_hash(access_token):
        return None

    proof = raw_state.get("proof")
    nonce = raw_state.get("nonce")

    if not isinstance(proof, str) or not isinstance(nonce, str) or not proof or not nonce:
        return None

    return ResourceServerDpopState(
        access_token_hash=raw_state["access_token_hash"],
        proof=proof,
        nonce=nonce,
    )


def store_resource_server_dpop_state(*, access_token: str, proof: str, nonce: str | None) -> None:
    if nonce is None:
        clear_resource_server_dpop_state()
        return

    STATE_DIR.mkdir(parents=True, exist_ok=True)
    RESOURCE_SERVER_DPOP_STATE_FILE.write_text(
        json.dumps(
            {
                "access_token_hash": access_token_hash(access_token),
                "proof": proof,
                "nonce": nonce,
            },
            indent=2,
        ),
        encoding="utf-8",
    )


def reset_state() -> None:
    if STATE_DIR.exists():
        shutil.rmtree(STATE_DIR)

    STATE_DIR.mkdir(parents=True, exist_ok=True)


def login_with_authorization_code() -> str:
    STATE_DIR.mkdir(parents=True, exist_ok=True)
    load_private_key(KEY_FILE)
    clear_resource_server_dpop_state()

    state = b64url(secrets.token_bytes(32))
    code_verifier = b64url(secrets.token_bytes(32))

    authorization_url = (
        f"{AUTHORIZATION_ENDPOINT}?"
        + urlencode(
            {
                "response_type": "code",
                "client_id": CLIENT_ID,
                "redirect_uri": REDIRECT_URI,
                "scope": SCOPE,
                "state": state,
                "code_challenge": code_challenge(code_verifier),
                "code_challenge_method": "S256",
            }
        )
    )

    click.echo("Open this URL in your browser:")
    click.echo(authorization_url)
    click.echo()

    callback = wait_for_authorization_code(expected_state=state)
    proof = create_proof(method="POST", url=TOKEN_ENDPOINT)

    response = httpx.post(
        TOKEN_ENDPOINT,
        headers={"DPoP": proof},
        data={
            "grant_type": "authorization_code",
            "client_id": CLIENT_ID,
            "code": callback.code,
            "redirect_uri": REDIRECT_URI,
            "code_verifier": code_verifier,
        },
        timeout=10,
    )

    if response.is_error:
        raise click.ClickException(response.text)

    token_response = response.json()
    access_token = store_token_response(token_response)
    print_token_summary(token_response)

    return access_token


def create_or_reuse_api_proof(
    *,
    access_token: str,
    nonce: str | None,
    replay: bool,
    wrong_key: bool,
    wrong_ath: bool,
    wrong_htu: bool,
) -> str:
    if replay:
        state = load_resource_server_dpop_state(access_token)
        if state is not None:
            return state.proof

    return create_proof(
        method="GET",
        url=PROTECTED_API,
        access_token=access_token,
        nonce=nonce,
        key_file=OTHER_KEY_FILE if wrong_key else KEY_FILE,
        wrong_ath=wrong_ath,
        wrong_htu=wrong_htu,
    )


def send_api_request(
    *,
    access_token: str,
    nonce: str | None = None,
    scheme: str = "DPoP",
    include_proof: bool = True,
    wrong_key: bool = False,
    wrong_ath: bool = False,
    wrong_htu: bool = False,
    replay: bool = False,
) -> ApiResult:
    headers = {"Authorization": f"{scheme} {access_token}"}
    proof: str | None = None

    if include_proof:
        proof = create_or_reuse_api_proof(
            access_token=access_token,
            nonce=nonce,
            replay=replay,
            wrong_key=wrong_key,
            wrong_ath=wrong_ath,
            wrong_htu=wrong_htu,
        )
        headers["DPoP"] = proof

    response = httpx.get(PROTECTED_API, headers=headers, timeout=10)

    if include_proof and proof is not None and response.status_code < 400:
        store_resource_server_dpop_state(
            access_token=access_token,
            proof=proof,
            nonce=nonce,
        )

    return ApiResult(
        status_code=response.status_code,
        body=response.text,
        dpop_nonce=response.headers.get("DPoP-Nonce"),
        www_authenticate=response.headers.get("WWW-Authenticate"),
    )


def print_result(result: ApiResult) -> None:
    click.echo(f"HTTP {result.status_code}")

    if result.www_authenticate:
        click.echo(f"WWW-Authenticate: {result.www_authenticate}")

    if result.dpop_nonce:
        click.echo(f"DPoP-Nonce: {result.dpop_nonce}")

    try:
        body = json.dumps(json.loads(result.body), indent=2)
    except (json.JSONDecodeError, ValueError):
        body = result.body

    click.echo(body)


@click.group(context_settings={"help_option_names": ["-h", "--help"]})
def cli() -> None:
    """Small client to showcase heimdall DPoP capabilities."""


@cli.command()
def keygen() -> None:
    """Create the primary DPoP key."""
    generate_private_key(KEY_FILE)


@cli.command("other-keygen")
def other_keygen() -> None:
    """Create a second DPoP key for negative tests."""
    generate_private_key(OTHER_KEY_FILE)


@cli.command()
def login() -> None:
    """Run Authorization Code + PKCE and store a DPoP-bound access token."""
    login_with_authorization_code()


@cli.command("clear-state")
def clear_state() -> None:
    """Delete all local client state and generate a fresh primary DPoP key."""
    reset_state()
    generate_private_key(KEY_FILE)


@cli.command()
@click.option("--scheme", default="DPoP", show_default=True)
@click.option("--no-proof", is_flag=True, help="Do not send a DPoP proof.")
@click.option("--wrong-key", is_flag=True, help="Sign the DPoP proof with a different key.")
@click.option("--wrong-ath", is_flag=True, help="Use a wrong access token hash in the proof.")
@click.option("--wrong-htu", is_flag=True, help="Use a wrong target URI in the proof.")
@click.option("--replay", is_flag=True, help="Reuse the previously successful DPoP proof.")
@click.option("--retry-nonce/--no-retry-nonce", default=True, show_default=True)
def call(
    scheme: str,
    no_proof: bool,
    wrong_key: bool,
    wrong_ath: bool,
    wrong_htu: bool,
    replay: bool,
    retry_nonce: bool,
) -> None:
    """Call the protected API through heimdall."""
    access_token = load_access_token()

    result = send_api_request(
        access_token=access_token,
        scheme=scheme,
        include_proof=not no_proof,
        wrong_key=wrong_key,
        wrong_ath=wrong_ath,
        wrong_htu=wrong_htu,
        replay=replay,
    )

    if result.status_code == 401 and result.dpop_nonce and retry_nonce:
        click.echo("Received DPoP nonce challenge from heimdall")
        click.echo(f"DPoP-Nonce: {result.dpop_nonce}")
        click.echo("Retrying with nonce")

        result = send_api_request(
            access_token=access_token,
            nonce=result.dpop_nonce,
            scheme=scheme,
            include_proof=not no_proof,
            wrong_key=wrong_key,
            wrong_ath=wrong_ath,
            wrong_htu=wrong_htu,
            replay=replay,
        )

    print_result(result)


if __name__ == "__main__":
    cli()

The client is a Click CLI with four commands: keygen generates the EC P-256 DPoP key pair; login runs the Authorization Code + PKCE flow — it constructs an authorization URL, starts a local callback server on port 8765, and exchanges the authorization code for a DPoP-bound access token that it stores in the state directory; call loads the cached token and calls the protected API, automatically handling heimdall’s nonce challenge; and clear-state wipes the state directory and generates a fresh key pair. All configuration (endpoints, client ID, state directory) is read from environment variables, which are supplied by the Docker Compose setup.

Create a file named dpop-realm.json in the root directory with the following contents:

{
  "realm": "dpop",
  "enabled": true,
  "sslRequired": "none",
  "clients": [
    {
      "clientId": "heimdall-dpop-client",
      "name": "heimdall DPoP Client",
      "enabled": true,
      "protocol": "openid-connect",
      "publicClient": true,
      "standardFlowEnabled": true,
      "directAccessGrantsEnabled": false,
      "serviceAccountsEnabled": false,
      "implicitFlowEnabled": false,
      "redirectUris": [
        "http://127.0.0.1:8765/callback"
      ],
      "webOrigins": [
        "+"
      ],
      "attributes": {
        "dpop.bound.access.tokens": "true",
        "pkce.code.challenge.method": "S256"
      },
      "defaultClientScopes": [
        "web-origins",
        "acr",
        "profile",
        "roles",
        "email"
      ],
      "optionalClientScopes": [
        "address",
        "phone",
        "offline_access",
        "microprofile-jwt"
      ],
      "protocolMappers": [
        {
          "name": "Subject (sub)",
          "protocol": "openid-connect",
          "protocolMapper": "oidc-sub-mapper",
          "consentRequired": false,
          "config": {
            "access.token.claim": "true",
            "id.token.claim": "true",
            "introspection.token.claim": "true"
          }
        }
      ]
    }
  ],
  "users": [
    {
      "username": "alice",
      "enabled": true,
      "emailVerified": true,
      "firstName": "Alice",
      "lastName": "DPoP",
      "email": "alice@example.org",
      "credentials": [
        {
          "type": "password",
          "value": "alice",
          "temporary": false
        }
      ]
    }
  ]
}

Keycloak imports this file automatically on startup. It defines a realm named dpop, a public OIDC client named heimdall-dpop-client with DPoP-bound access tokens enforced via dpop.bound.access.tokens: true and PKCE required via pkce.code.challenge.method: S256. The Authorization Code flow is enabled (standardFlowEnabled: true) with the redirect URI pointing to the local callback server. The Subject mapper ensures the sub claim is included in the access token. The user alice with password alice is created for testing.

Now, let’s bring everything together by creating a file named docker-compose.yaml in the root directory with the following contents:

services:
  heimdall: (1)
    image: dadrus/heimdall:dev
    command: serve proxy -c /etc/heimdall/config.yaml --insecure
    ports:
      - "9090:4456"
    volumes:
      - ./heimdall-config.yaml:/etc/heimdall/config.yaml:ro
      - ./secrets.jwks:/etc/heimdall/secrets.jwks:ro
      - ./rules:/etc/heimdall/rules:ro
      - system-trust:/etc/ssl/certs:ro
    depends_on:
      keycloak-key-importer:
        condition: service_completed_successfully
      upstream:
        condition: service_started

  upstream: (2)
    image: traefik/whoami:latest
    command: --port=8081

  key-material: (3)
    image: alpine:3.22
    volumes:
      - keycloak-key-material:/keymaterial
      - system-trust:/system-trust
    command:
      - sh
      - -ec
      - |
        apk add --no-cache openssl >/dev/null

        if [ -f /keymaterial/keycloak-signing.key ] && [ -f /keymaterial/keycloak-signing.crt ] && [ -f /system-trust/ca-certificates.crt ]; then
          echo "Key material already exists"
          exit 0
        fi

        echo "Generating local CA and Keycloak signing certificate..."

        mkdir -p /keymaterial /system-trust

        openssl genpkey \
          -algorithm RSA \
          -pkeyopt rsa_keygen_bits:2048 \
          -out /keymaterial/root-ca.key

        openssl req \
          -x509 \
          -new \
          -key /keymaterial/root-ca.key \
          -sha256 \
          -days 3650 \
          -subj "/CN=heimdall-dpop-guide-root-ca" \
          -out /keymaterial/root-ca.crt \
          -addext "basicConstraints=critical,CA:TRUE,pathlen:0" \
          -addext "keyUsage=critical,keyCertSign,cRLSign" \
          -addext "subjectKeyIdentifier=hash"

        openssl genpkey \
          -algorithm RSA \
          -pkeyopt rsa_keygen_bits:2048 \
          -out /keymaterial/keycloak-signing.key

        openssl req \
          -new \
          -key /keymaterial/keycloak-signing.key \
          -subj "/CN=dpop" \
          -out /keymaterial/keycloak-signing.csr

        cat > /keymaterial/keycloak-signing.ext <<'EOF'
        basicConstraints=critical,CA:FALSE
        keyUsage=critical,digitalSignature
        subjectKeyIdentifier=hash
        authorityKeyIdentifier=keyid,issuer
        EOF

        openssl x509 \
          -req \
          -in /keymaterial/keycloak-signing.csr \
          -CA /keymaterial/root-ca.crt \
          -CAkey /keymaterial/root-ca.key \
          -CAcreateserial \
          -out /keymaterial/keycloak-signing.crt \
          -days 3650 \
          -sha256 \
          -extfile /keymaterial/keycloak-signing.ext

        cp /keymaterial/root-ca.crt /system-trust/ca-certificates.crt

        echo "Key material generated"

  keycloak: (4)
    image: quay.io/keycloak/keycloak:26.4.0
    command:
      - start-dev
      - --http-port=8080
      - --hostname=127.0.0.1
      - --hostname-strict=false
      - --import-realm
    ports:
      - "8080:8080"
    environment:
      KEYCLOAK_ADMIN: admin
      KEYCLOAK_ADMIN_PASSWORD: admin
    volumes:
      - ./dpop-realm.json:/opt/keycloak/data/import/dpop-realm.json:ro
    depends_on:
      key-material:
        condition: service_completed_successfully

  keycloak-key-importer: (5)
    image: alpine:3.22
    depends_on:
      keycloak:
        condition: service_started
      key-material:
        condition: service_completed_successfully
    volumes:
      - keycloak-key-material:/keymaterial:ro
    command:
      - sh
      - -ec
      - |
        apk add --no-cache curl jq >/dev/null

        echo "Waiting for Keycloak..."

        until curl -fsS http://keycloak:8080/realms/dpop/.well-known/openid-configuration >/dev/null; do
          sleep 1
        done

        echo "Requesting admin token..."

        ADMIN_TOKEN="$$(curl -fsS \
          -X POST http://keycloak:8080/realms/master/protocol/openid-connect/token \
          -H "content-type: application/x-www-form-urlencoded" \
          --data-urlencode "grant_type=password" \
          --data-urlencode "client_id=admin-cli" \
          --data-urlencode "username=admin" \
          --data-urlencode "password=admin" \
          | jq -r .access_token)"

        REALM_ID="$$(curl -fsS \
          -H "authorization: Bearer $${ADMIN_TOKEN}" \
          http://keycloak:8080/admin/realms/dpop \
          | jq -r .id)"

        EXISTING_PROVIDER="$$(curl -fsS \
          -H "authorization: Bearer $${ADMIN_TOKEN}" \
          "http://keycloak:8080/admin/realms/dpop/components?type=org.keycloak.keys.KeyProvider" \
          | jq -r '.[] | select(.name == "heimdall-dpop-rsa") | .id' \
          | head -n 1)"

        if [ -n "$${EXISTING_PROVIDER}" ]; then
          echo "Keycloak RSA signing key provider already exists: $${EXISTING_PROVIDER}"
          exit 0
        fi

        jq -n \
          --arg parentId "$${REALM_ID}" \
          --rawfile privateKey /keymaterial/keycloak-signing.key \
          --rawfile certificate /keymaterial/keycloak-signing.crt \
          '{
            name: "heimdall-dpop-rsa",
            providerId: "rsa",
            providerType: "org.keycloak.keys.KeyProvider",
            parentId: $$parentId,
            config: {
              priority: ["1000"],
              enabled: ["true"],
              active: ["true"],
              algorithm: ["RS256"],
              privateKey: [$$privateKey],
              certificate: [$$certificate]
            }
          }' > /tmp/key-provider.json

        echo "Importing Keycloak RSA signing key provider..."

        curl -fsS \
          -X POST http://keycloak:8080/admin/realms/dpop/components \
          -H "authorization: Bearer $${ADMIN_TOKEN}" \
          -H "content-type: application/json" \
          --data-binary @/tmp/key-provider.json

        echo "Keycloak RSA signing key provider imported"

  dpop-client: (6)
    image: ghcr.io/astral-sh/uv:python3.13-bookworm-slim
    working_dir: /work/client
    volumes:
      - .:/work
      - client-state:/tmp/.state
    environment:
      UV_LINK_MODE: copy
      UV_PROJECT_ENVIRONMENT: /tmp/heimdall-dpop-client-venv
      AUTHORIZATION_ENDPOINT: http://127.0.0.1:8080/realms/dpop/protocol/openid-connect/auth
      TOKEN_ENDPOINT: http://keycloak:8080/realms/dpop/protocol/openid-connect/token
      PROTECTED_API: http://heimdall:4456/api
      CLIENT_ID: heimdall-dpop-client
      STATE_DIR: /tmp/.state
    command: uv run client keygen
    ports:
      - "8765:8765"

volumes:
  keycloak-key-material:
  system-trust:
  client-state:

1	Heimdall runs in proxy mode and is available at `http://127.0.0.1:9090` on localhost. The `--insecure` flag disables enforcement of some security settings you can learn about here. The `system-trust` volume is mounted as the system CA store so heimdall trusts the certificate Keycloak uses to sign JWKs.
2	The upstream service echoes back everything it receives, simulating our protected API.
3	A short-lived container that generates a local root CA and a Keycloak signing certificate signed by that CA. The key material is stored in the `keycloak-key-material` volume and the root CA is placed in `system-trust` so downstream containers can trust it. The script is idempotent and exits immediately if the material already exists.
4	Keycloak starts in development mode with the `--import-realm` flag, which automatically imports the `dpop` realm on first startup. `--hostname=127.0.0.1` is intentional: it ensures the `iss` claim in issued tokens uses the host-accessible address, which is required for the Authorization Code flow redirect to work from a browser.
5	A short-lived container that waits for Keycloak to be ready and then imports the generated RSA signing key into the `dpop` realm via the Admin API. heimdall does not start until this service exits successfully, guaranteeing that the trusted signing key is in place before any token validation is attempted.
6	The DPoP client runs inside a container backed by the `uv` Python runtime. The root directory is mounted at `/work`, and the `client-state` volume is mounted at `/tmp/.state` to persist the DPoP key pair and token across runs without writing to the host filesystem. Port 8765 is published so the browser can complete the Authorization Code redirect to the local callback server. The OIDC endpoints and client ID are injected as environment variables. Note that `AUTHORIZATION_ENDPOINT` uses `127.0.0.1` (the browser-accessible address) while `TOKEN_ENDPOINT` uses the Docker-internal `keycloak` hostname.

Use the Setup

In the root directory, run the following command to start all services:
```
docker compose up
```
Docker Compose starts all services in dependency order: first key-material generates the PKI, then keycloak imports the realm, then keycloak-key-importer imports the signing key, and finally heimdall and upstream start. The dpop-client service also runs at this point — it executes keygen as its default command, generates a DPoP key pair in the shared state volume, and exits. Wait until heimdall is up and running by watching the logs. Look for a line indicating heimdall has started successfully:
```
heimdall  | ... level=INFO msg="Started" ...
```
The remaining steps require a separate terminal while this one continues streaming logs.

Log in as alice using the Authorization Code flow. The --service-ports flag is required to publish port 8765 to the host so the browser can complete the redirect:

docker compose run --service-ports --rm dpop-client uv run client login

The command prints an authorization URL and starts a local callback server on port 8765. Open the printed URL in your browser and log in with username alice and password alice. After a successful login, the browser is redirected back and the terminal shows output similar to the following:

Open this URL in your browser:
http://127.0.0.1:8080/realms/dpop/protocol/openid-connect/auth?...

Waiting for redirect on http://127.0.0.1:8765/callback
token_type: DPoP
selected access token claims:
{
  "iss": "http://127.0.0.1:8080/realms/dpop",
  "aud": null,
  "sub": "...",
  "azp": "heimdall-dpop-client",
  "preferred_username": "alice",
  "cnf": {
    "jkt": "CnytcIWTLO-FIpS3t3LZFjXKgHCrHNlBxQ_xaFJtV6Y"
  }
}

token_type: DPoP confirms that Keycloak issued a DPoP-bound access token rather than a plain bearer token. The cnf.jkt claim is the SHA-256 thumbprint of the client’s public key, cryptographically binding this token to the generated key pair.

The DPoP key pair was created by the keygen step during docker compose up and persisted in the client-state Docker volume. The access token is stored there too after a successful login, so you can call the API multiple times without logging in again until the token expires.

Call the protected API:

docker compose run --rm dpop-client uv run client call

Because nonce_required is set to true in heimdall’s configuration, the first request is rejected with a 401 Unauthorized and a use_dpop_nonce challenge. The client automatically retries with a fresh DPoP proof that includes the nonce. You should see output similar to the following:

Received DPoP nonce challenge from heimdall
DPoP-Nonce: ZHBvcC1ub25jZS1tYXN0Z...
Retrying with nonce
HTTP 200
{
  "hostname": "7a3f2b1c9e8d",
  "ip": [
    "127.0.0.1",
    "::1",
    "172.20.0.3"
  ],
  "headers": {
    "Authorization": [
      "DPoP eyJhbGciOiJSUzI1NiIsInR5cCIgOiAiSldUIiwia..."
    ],
    "Dpop": [
      "eyJhbGciOiJFUzI1NiIsImp3ayI6eyJjcnYiOiJQLTI1Ni..."
    ],
    "Forwarded": [
      "for=172.20.0.5;host=\"heimdall:4456\";proto=http"
    ],
    "User-Agent": [
      "python-httpx/0.28.1"
    ]
  },
  "url": "/api",
  "host": "heimdall:4456",
  "method": "GET",
  "remoteAddr": "172.20.0.4:37742"
}

The HTTP 200 confirms that heimdall validated the DPoP-bound access token together with the DPoP proof and forwarded the request to the upstream service. Two headers are worth noting in the echoed request body: Authorization uses the DPoP scheme instead of Bearer, and Dpop carries the proof JWT.

Take a look at further options of the client if you want to see further cases in action:
```
docker compose run --rm dpop-client uv run client -h
```

Cleanup

Just stop the environment with CTRL-C and delete the created files. If you started docker compose in the background, tear the environment down with docker compose down.

Last updated on Jun 19, 2026

First-Party Authentication with OpenID Connect
